NSHT30 is a CMOS-MEMS-based relative humidity (RH) and temperature sensor. NSHT30 integrates a complete sensor system on a single chip, including capacitive relative humidity sensor, CMOS temperature sensor and signal processor and I2C digital communication interface, in the DFN and LGA packages of 2.5mmÍ2.5mmÍ0.9mm. The communication mode of its I2C interface, extremely small package and low power consumption characteristics allow NSHT30 to be more widely integrated into a variety of applications. In addition, NSHT30's I2C interface features two unique, selectable I2C addresses, communication rates up to 1MHz, and a wide voltage operating range, making NSHT30 more compatible in a variety of application environments. It also has programmable interrupt thresholds that can provide alarms and system awakenings without the need for a microcontroller to continuously monitor the system.
Product Features
• Relative humidity (RH) sensor：
- Working range：0%RH~100%RH
- Accuracy：±3%RH（typ.）
• Temperature sensor：
- Operating temperature range：-40℃~125℃
- Accuracy：±0.3℃（typ.）
• Digital output for relative humidity and temperature compensation
• Wide supply voltage range：2.0V~5.5V
• I2C digital interface, communication rate up to 1MHz
- 2 optional addresses
- Data protection with CRC check
• Low-power：average current: 3.2μA

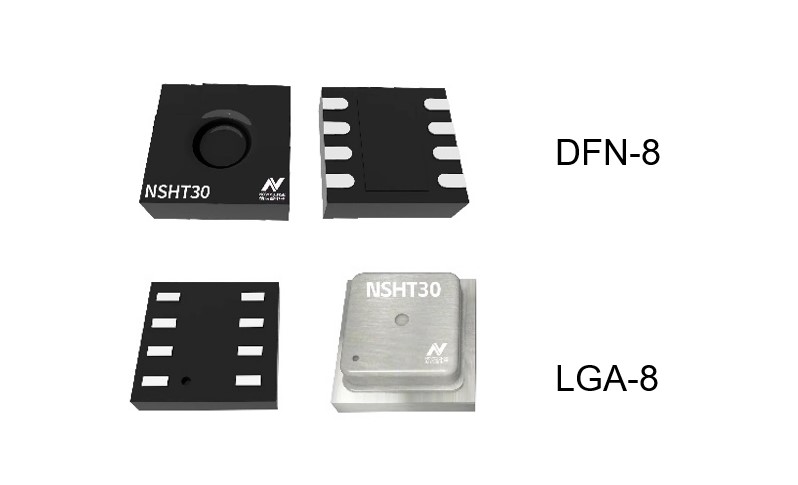

• 8-Pin LGA and DFN package available
Application
• Humidifier/dehumidifier
• White goods
• Intelligent constant temperature and humidity controller
• Ventilators
• Smart agriculture
• Cold chain logistics
• Hygrograph
• Automobiles intelligent fog removal system

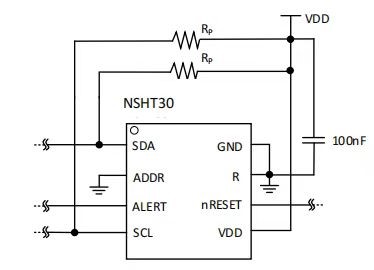

Functional Block Diagram
>For more product information, please contact us.
>
>
>
